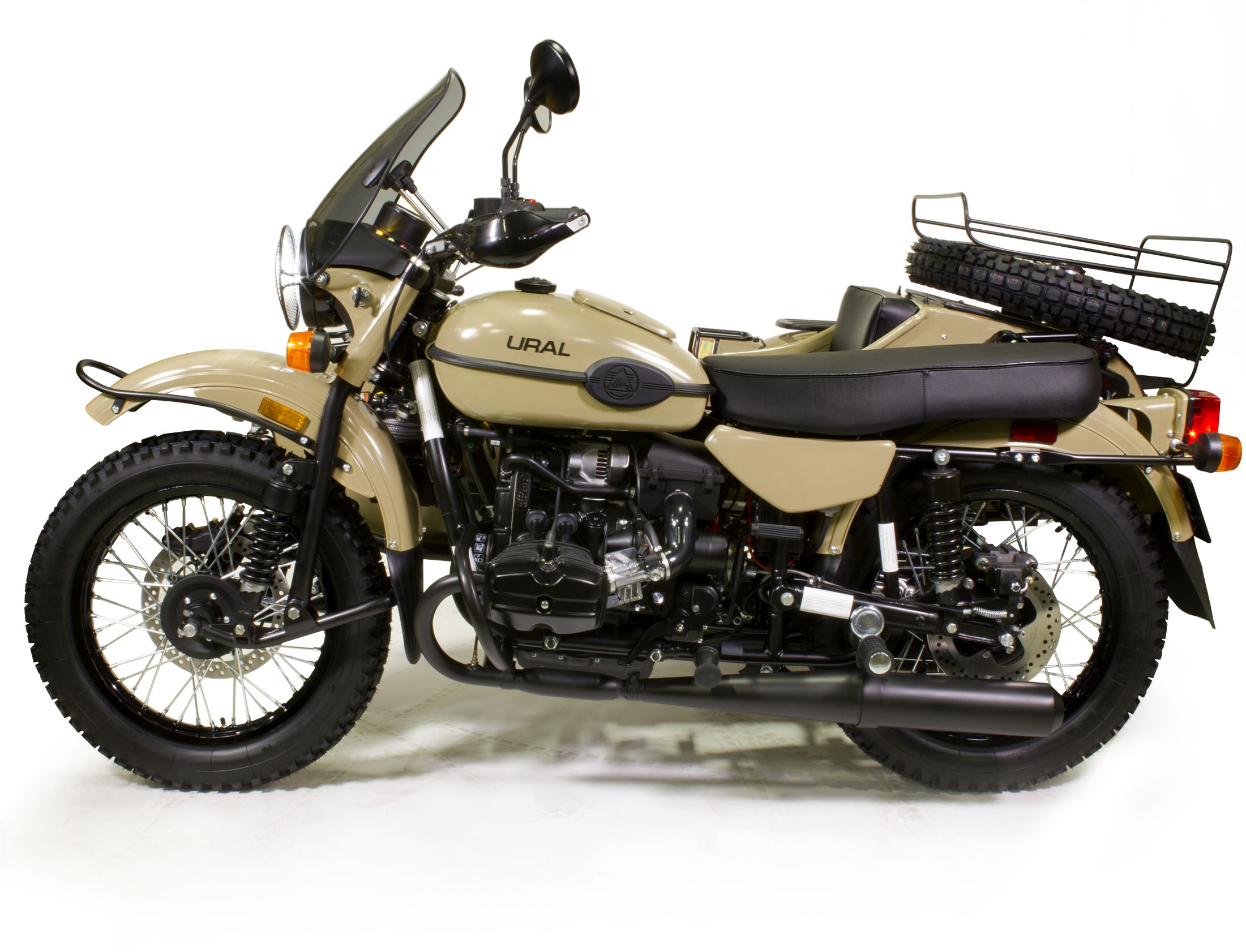

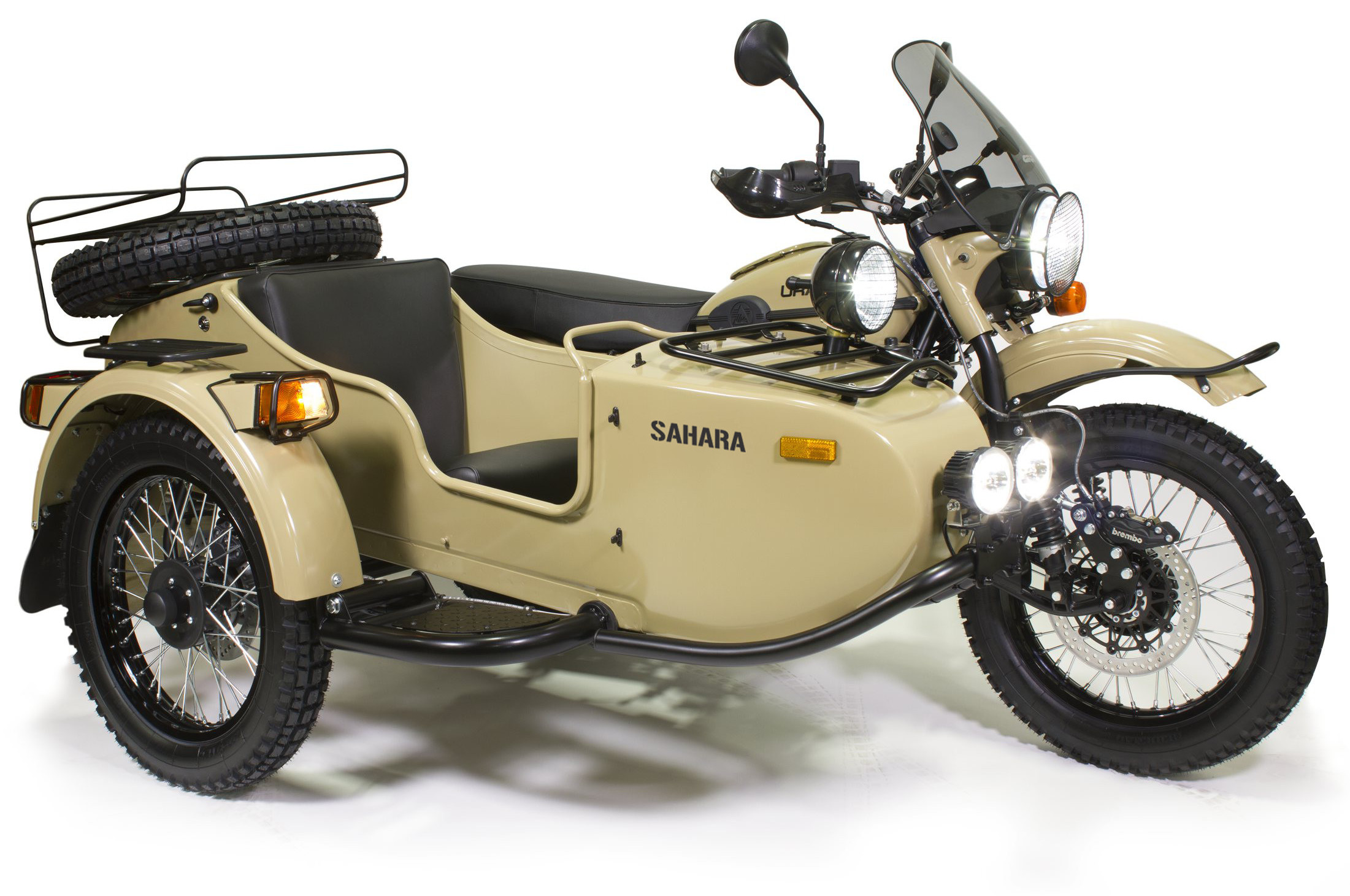

Our most iconic Limited Edition is back. Fully upgraded and ready to take you anywhere.
Our Gear Up Sahara Comes Standard With The Following
On-Demand 2WD
Universal Spare Tire & Luggage Rack
Sahara Paint
Black Jerry Can
Black Engine

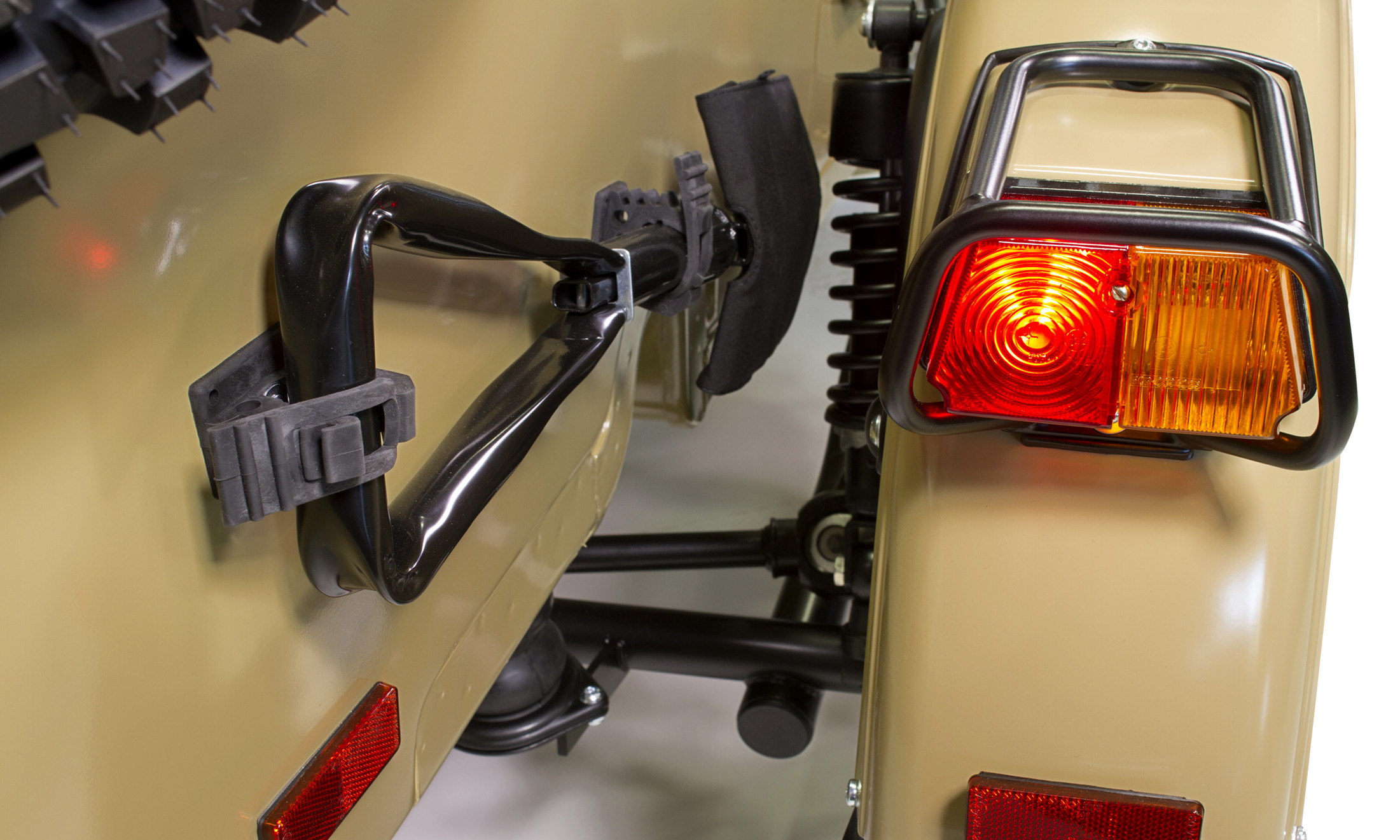

Utility Shovel
Sidecar Bumper
Tool Kit

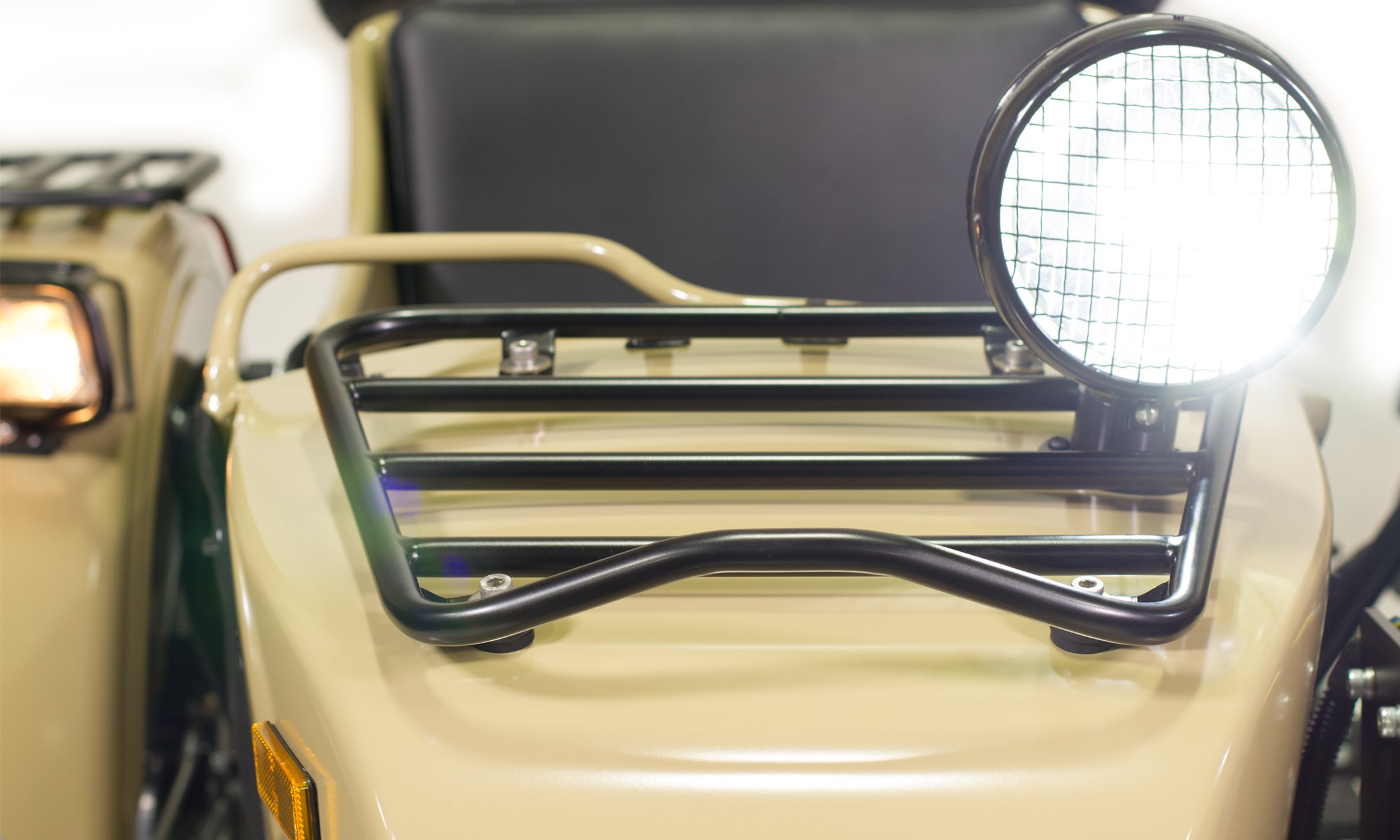

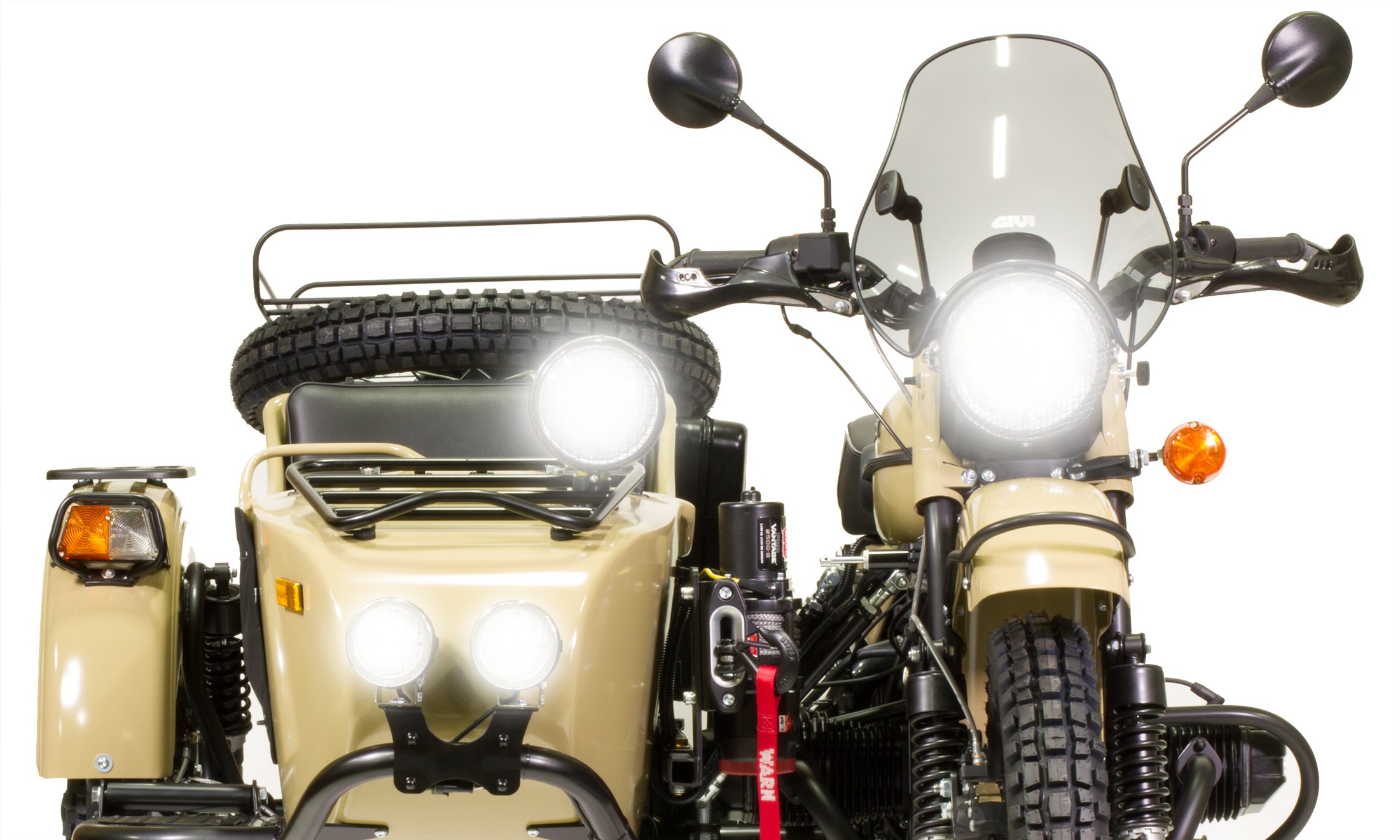

Sidecar Spotlight
Toolbox Gas Tank
Sidecar Accessories Panel (Phone / Tablet Charging)
Black Sidecar Cordura Tonneau Cover
Sidecar Accessories Panel (Phone / Tablet Charging)
Black Sidecar Cordura Tonneau Cover

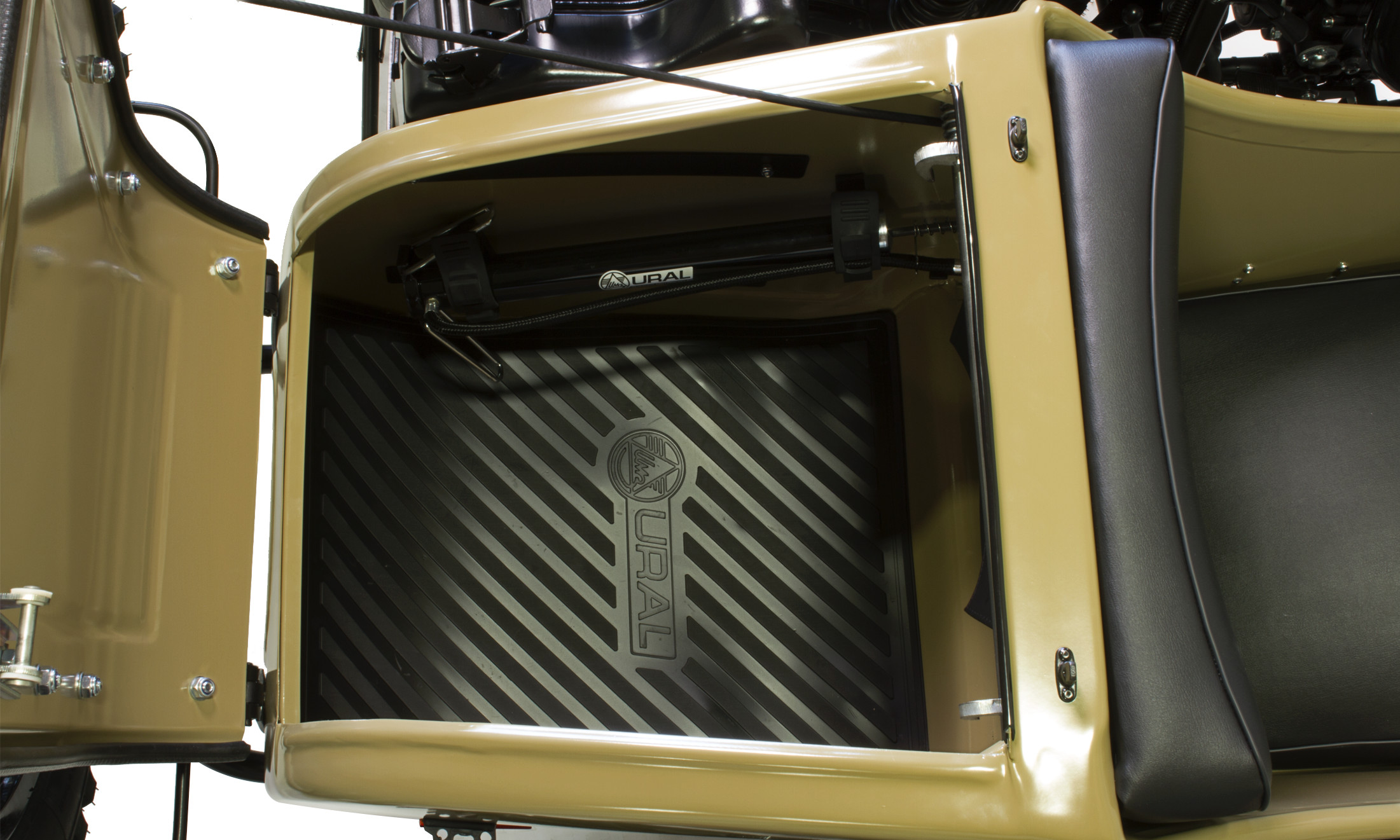

Rubber Floor + Trunk Mats

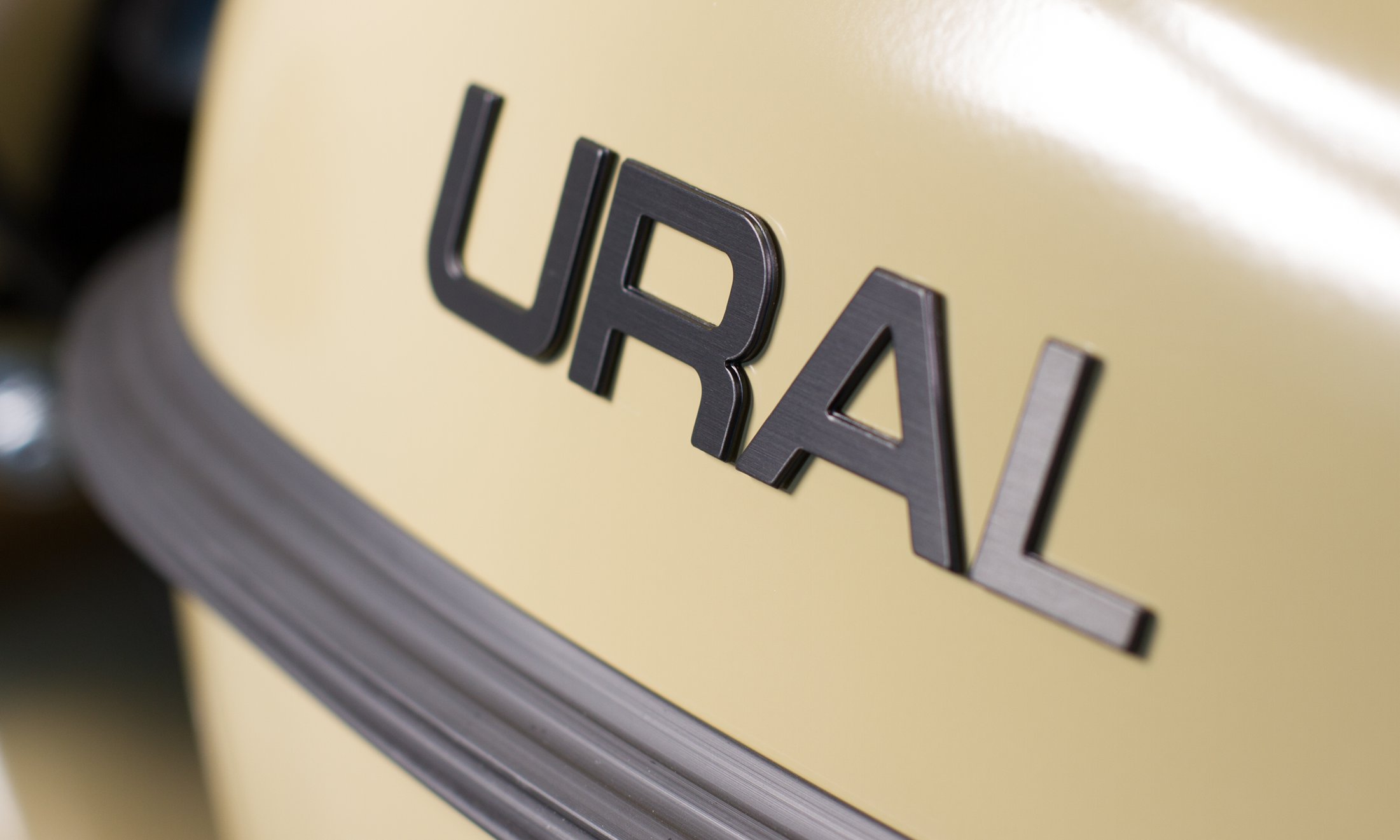

Sahara Decal and Black Tank Badge
Starting at $17,999*
*MSRP excludes tax, license, registration, destination, set up and accessory installation fees. Dealer prices may vary.

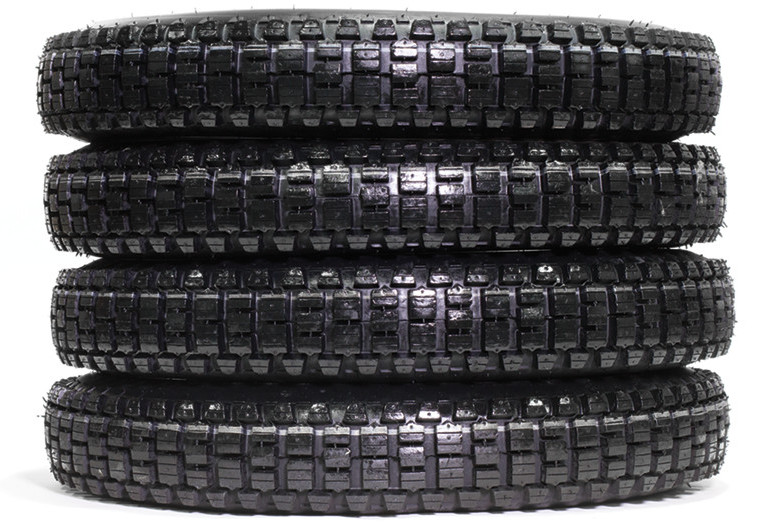

Unstoppable Traction
Conquer the mud with our most popular off-road tire, the Heidenau K37. The K37 tread and profile are the perfect compliment for our 2WD sidecars.
Buy a full set (4 tires) for
$550*
*MSRP excludes installation fees. Dealer prices may vary.
Technical Specifications
Engine and Transmission
- Displacement, cc: 749
- Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
- Valve per cylinder: 2
- Bore and stroke (mm x mm): 78 x 78
- Max output (hp): 41 @ 5500 rpm
- Max torque (ft-lbs): 42 @ 4300 rpm
- Compression: 8.6:1
- Fuel system: Throttle body EFI
- Starting: Electric & Kickstart
- Clutch Double-disc dry
- Transmission type: Manual
- Speeds: 4 forward 1 reverse
- Primary drive (rear wheel): Driveshaft
- Final drive ratio: 4.62
- Engageable sidecar wheel drive: Yes, driveshaft
Physical Measurements
- Overall length, inch.: 98.8
- Overall heights, inch.: 54.3
- Overall width, inch.: 63.6
- Seat height, (unladen), inch.: 32.0
- Ground clearance (unladen),inch.: 6.8
- Dry weight, lbs: 730
Electrical
- Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt
- Battery: FAYTX20HL (12V, 20A)
- Headlight: H4
- Spark plugs: NGK BPR6HS
Chassis
- Front suspension: IMZ leading link fork
- Rear suspension: Double sided swing-arm with two Sachs hydraulic spring shock absorbers, 5x adjustable
- Sidecar suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber, 5x adjustable
- Wheels: 2.15X19 Aluminum rims with steel spokes
- Tires: Duro HF-308, 4.0×19"
- Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
- Rear brake: HB big bore single piston integrated floating caliper with 256mm fixed NG rotor
- Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor
Misc.
- Fuel grade: 91 Octane, unleaded
- Fuel tank capacity, gallons: 5.0
- Reserve, gallons: app. 1
- Estimated fuel economy, mpg: 31-37
- Estimated range, miles: 155-185
- Recommended max cruising speed, mph: 70
- Max permissible weight, lbs:1325
- Trunk volume, cubic ft.: 2.9
Warranty
- 2-years parts and labor unlimited mileage.
